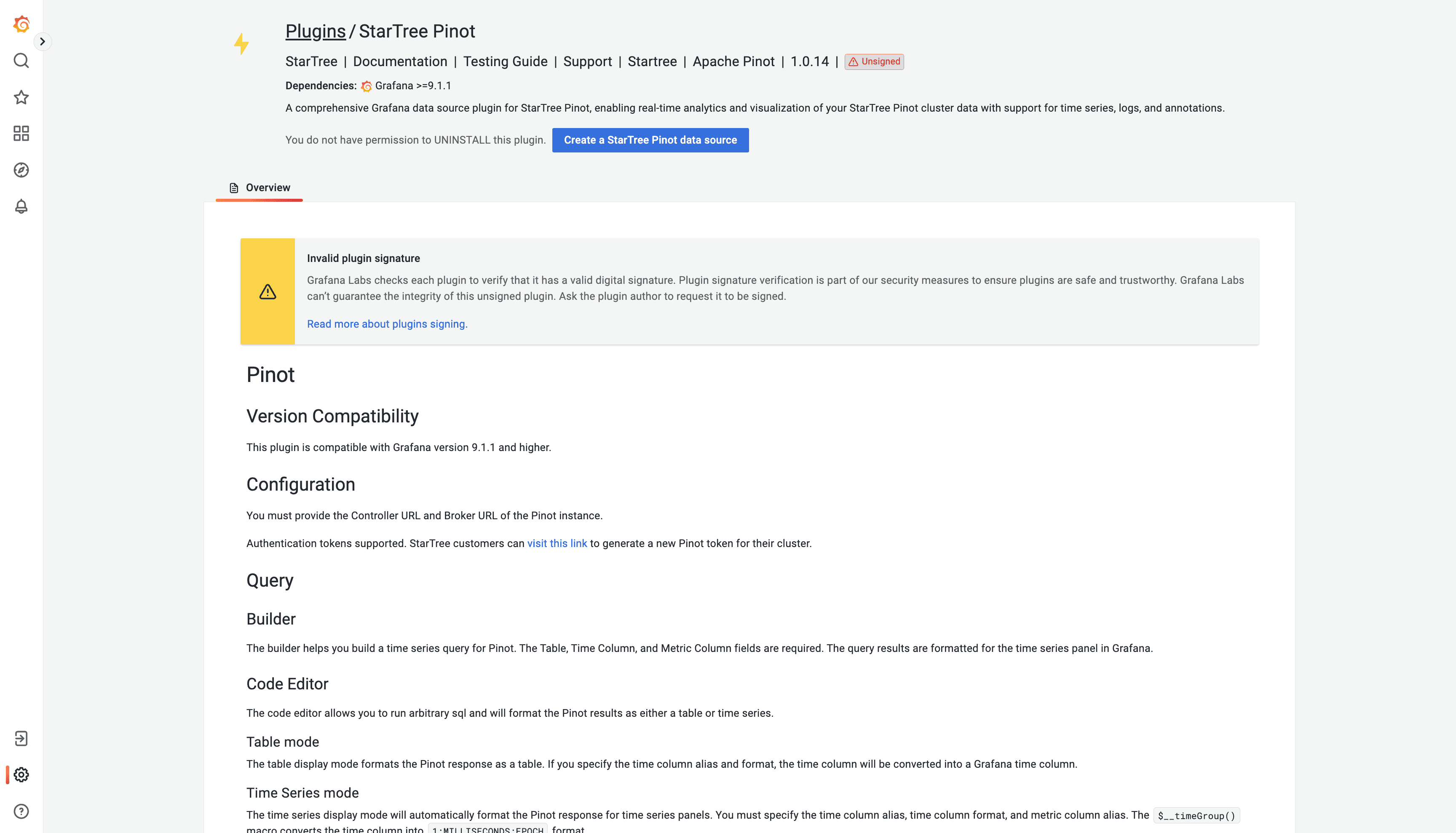

Pinot

Version Compatibility

This plugin is compatible with Grafana version 9.1.1 and higher.

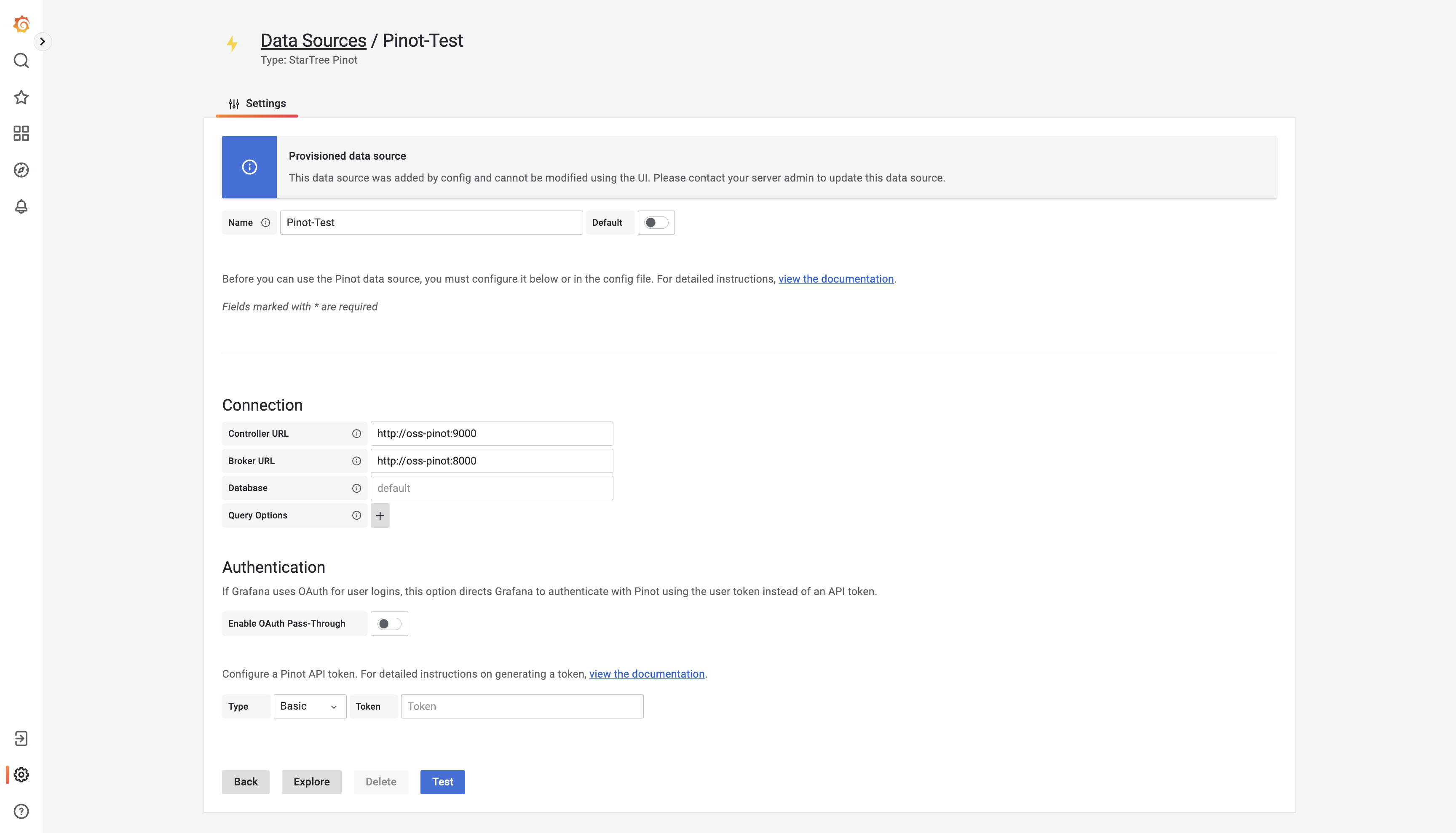

Configuration

You must provide the Controller URL and Broker URL of the Pinot instance.

Authentication tokens supported. StarTree customers can visit this link to generate a new Pinot token for their cluster.

Trace correlation

The datasource settings include two optional correlation sections:

• Trace to logs — when the table, trace ID, time, and log message columns are set, each span in a trace view gets a "Logs for this trace" link that opens a logs query against the configured logs table, filtered by the span's trace ID.
• Logs to trace — the reverse direction. When the traces table, trace ID column, and time column are set, each log row's trace ID gets a "View trace" link that opens a traces query against the configured traces table for that trace ID. The trace ID column must also be added as a metadata column on the logs query so its value is present on the row.

Query

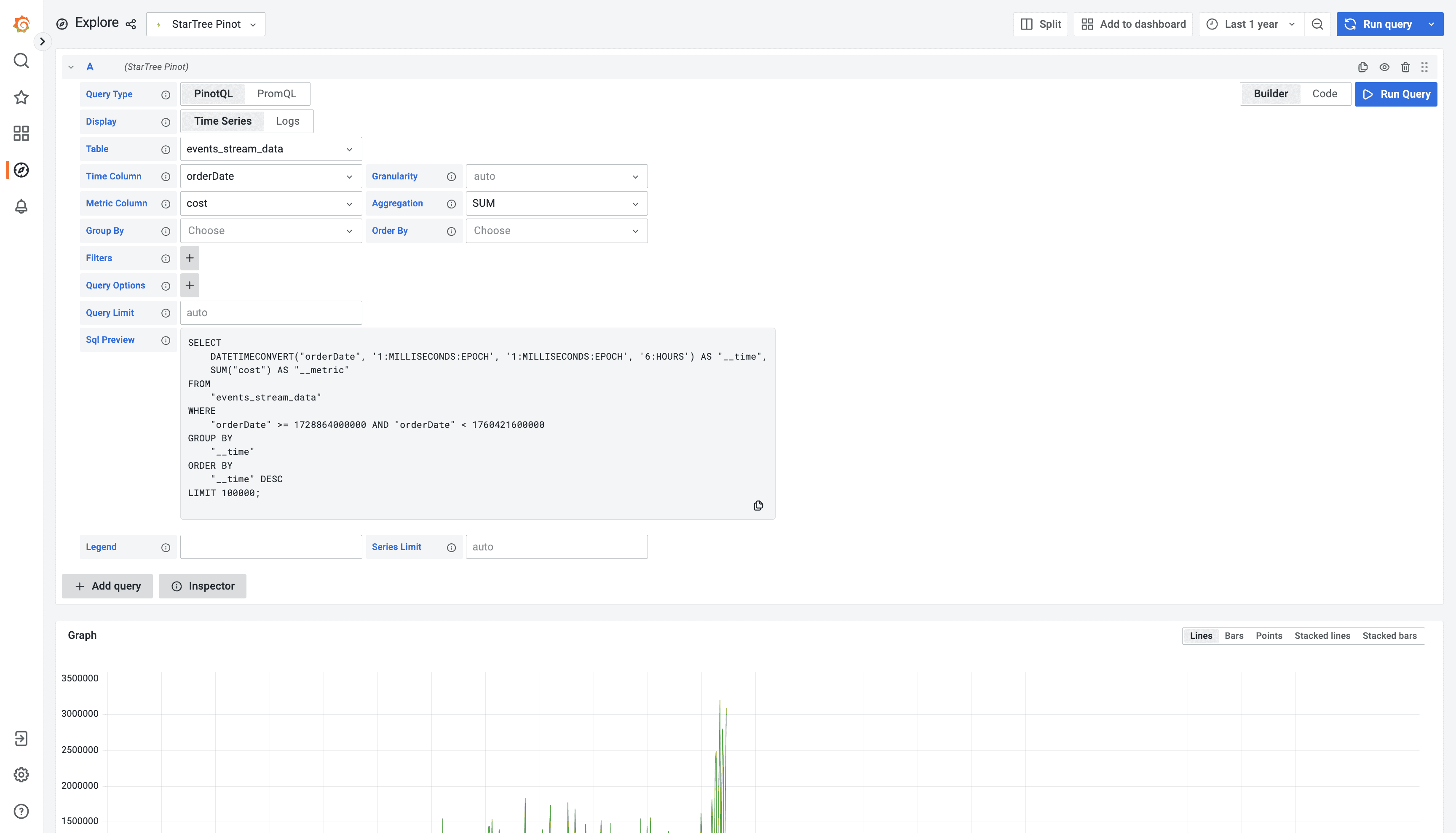

Builder

The builder helps you build a time series query for Pinot. The Table, Time Column, and Metric Column fields are required. The query results are formatted for the time series panel in Grafana.

Code Editor

The code editor allows you to run arbitrary sql and will format the Pinot results as either a table or time series.

Table mode

The table display mode formats the Pinot response as a table. If you specify the time column alias and format, the time column will be converted into a Grafana time column.

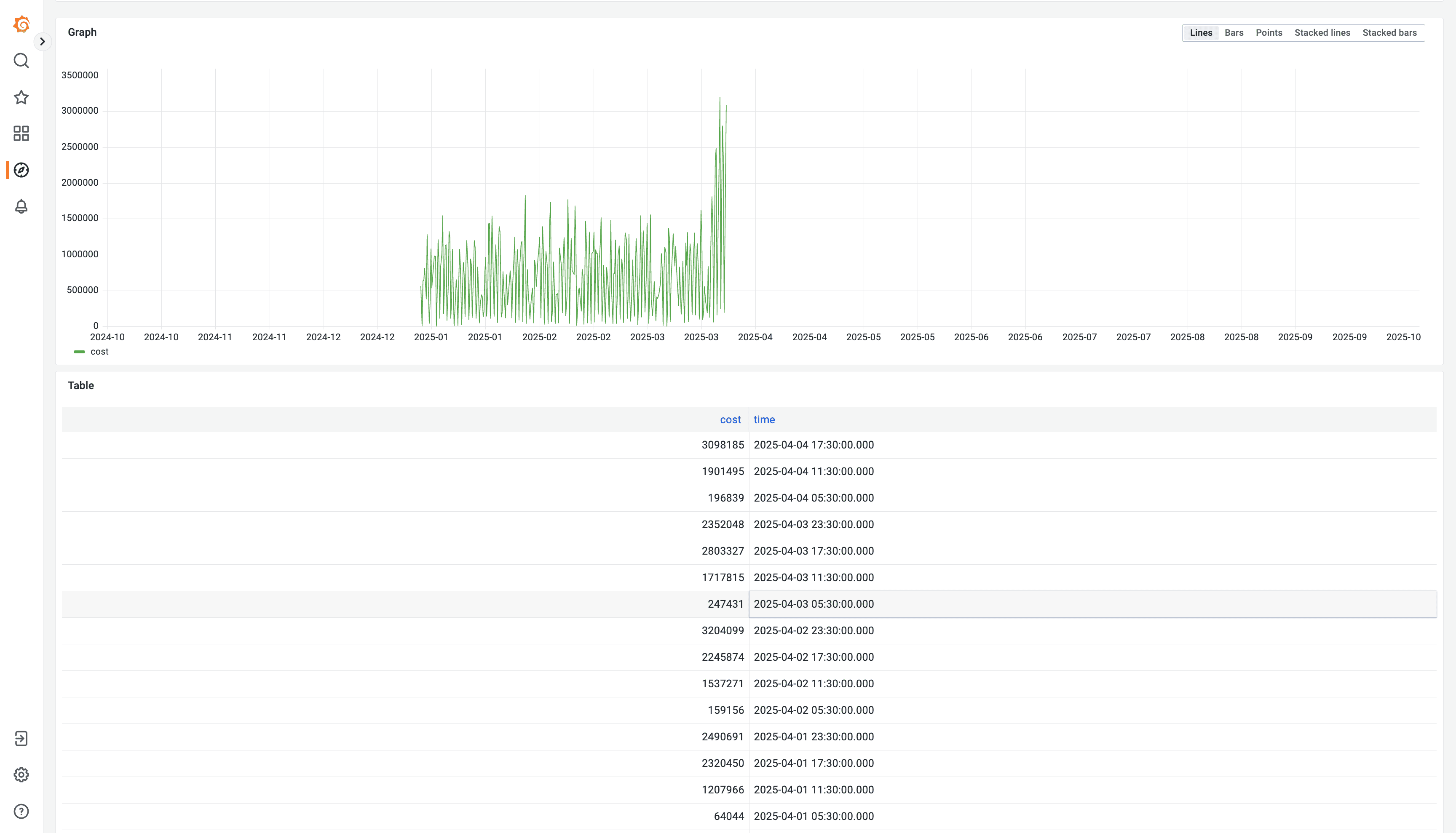

Time Series mode

The time series display mode will automatically format the Pinot response for time series panels. You must specify the time column alias, time column format, and metric column alias. The $__timeGroup() macro converts the time column into 1:MILLISECONDS:EPOCH format.

Annotations mode

When the datasource is used as an annotation query, Grafana maps the result columns to annotation events by name:

Column	Annotation field
time	Start time of the annotation (epoch milliseconds — use $__timeGroup()).
timeEnd	End time. When present, the annotation is rendered as a region (start → end).
title	Annotation title.
text	Annotation description.
tags	Annotation tags.

Selecting only a time column produces point annotations:

SELECT
  $__timeGroup("event_time") AS "time",
  'My annotation' AS "title",
  'My annotation text' AS "text"
FROM $__table()
WHERE $__timeFilter("event_time")

Adding a timeEnd column turns each event into a region spanning the start and end times:

SELECT
  $__timeGroup("start_time") AS "time",
  $__timeGroup("end_time") AS "timeEnd",
  'My annotation' AS "title",
  'My annotation text' AS "text"
FROM $__table()
WHERE $__timeFilter("start_time")

Macros

To simplify syntax and to allow for dynamic parts, like date range filters, the query can contain the following macros:

Name	Description	Example Output
$__tableName	Replaced by the quoted name of the table.	"my_table"
$__timeGroup(dateTimeColumn, *granularity)	Replaced by a expression usable in GROUP BY. The expression uses DATETIMECONVERT to convert the given time column into buckets with of the given granularity. The resulting bucket is the time group in milliseconds. The column must be a date time column. Granularity is optional and defaults to the granularity specified in the panel's query options. If granularity is given, it must be a format usable by DATETIMECONVERT, refer to DATETIMECONVERT | Apache Pinot Docs.	DATETIMECONVERT("ts", '1:SECONDS:TIMESTAMP', '1:MILLISECONDS:EPOCH', '15:SECONDS')
$__timeFilter(dateTimeColumn, *granularity)	Replaced by a time range filter for the specified date time column, aligned to the time granularity. The time range matches the format of the column. The specified column must be a date time column. Granularity is optional and defaults to the granularity specified in the panel's query options. If granularity is given, it must be a format usable by DATETIMECONVERT, refer to DATETIMECONVERT | Apache Pinot Docs.	"ts" >= 1721635200 AND "ts" <= 1721656800
$__timeFilterMillis(column, *granularity)	Replaced by a time range filter in milliseconds for the specified column, aligned to the time granularity. The column does not have to be a date time column. Granularity is optional and defaults to the granularity specified in the panel's query options. If granularity is given, it must be a format usable by DATETIMECONVERT, refer to DATETIMECONVERT | Apache Pinot Docs.	"ts" >= 1721635200000 AND "ts" <= 1721656800000
$__timeTo(dateTimeColumn)	Replaced by the exact start time of the currently active time selection. The output matches the format of the specified column. The specified column must be a date time column.	1721636272
$__timeToMillis	Replaced by the exact start time in milliseconds of the currently active time selection.	1721636272002
$__timeFrom(dateTimeColumn)	Replaced by the exact end time of the currently active time selection. The output matches the format of the specified column. The specified column must be a date time column.	1721657872
$__timeFromMillis	Replaced by the exact end time in milliseconds of the currently active time selection.	1721657872002
$__metricAlias	Replaced by the quoted metric alias specified in the query editor.	"my_metric"
$__timeAlias	Replaced by the quoted time alias specified in the query editor.	"my_time"
$__granularityMillis(*granularity)	Replaced by the time bucket granularity in milliseconds. Granularity is optional and defaults to the granularity specified in the panel's query options. If granularity is given, it must be a format usable by DATETIMECONVERT, refer to DATETIMECONVERT | Apache Pinot Docs.	3600000
$__interval_s	Replaced by the time bucket granularity in whole seconds (the seconds counterpart of $__granularityMillis). Sub-second granularities truncate to 0.	3600
$__panelMillis	Replaced by the total milliseconds in the panel's time selection. Equal to $__timeToMillis - $__timeFromMillis.	86400000
$__fromTime	Replaced by the start of the selected time range in epoch seconds (the seconds counterpart of $__timeFromMillis).	1721635200
$__toTime	Replaced by the end of the selected time range in epoch seconds (the seconds counterpart of $__timeToMillis).	1721656800
$__adHocFilter	Replaced by the dashboard's ad-hoc filters as an AND-joined boolean expression, suitable for a WHERE clause. Identifiers are quoted and values escaped. Supported operators: =, !=, =~ (regex), !~ (not regex), <, >. With no active filters it expands to TRUE, so WHERE $__adHocFilter is a safe no-op. Applies to PinotQL code queries; place the macro where the filters should go.	"city" = 'NY' AND "age" > '30'
$__conditionalAll(condition, $variable)	Replaced by condition unless the template variable $variable has its All option selected (or no value), in which case it expands to 1=1 — dropping the filter. Lets a multi-value variable mean "no filter" when All is picked, instead of generating a huge IN (...). The condition may contain commas and parentheses. Applies to PinotQL code queries.	"service" = '$service' or 1=1
$__searchFilter	For use in query variable definitions only. Replaced by what the user types in the variable's dropdown, as a SQL LIKE pattern with a trailing % (prefix match); expands to % (match everything) when nothing is typed. Single quotes are escaped. Write it inside a quoted literal, e.g. WHERE "name" LIKE '$__searchFilter'.	'check%' (typed check) or '%'

* Indicates an optional parameter.
