Integrate your source code on GitHub with Pyroscope profiling data.

The Grafana Pyroscope source code integration offers seamless integration between your GitHub code repositories and Grafana. Using this app, you can map your code directly within Grafana and visualize resource performance line by line. With these powerful capabilities, you can gain deep insights into your code’s execution and identify performance bottlenecks.

Every profile type works with the integration for code written in Go, Java, and Python.

For information on profile types and the profiles available with Go, Java, and Python, refer to Profiling types and their uses.

How it works

The Pyroscope source code integration uses labels configured in the application being profiled to associate profiles with source code. The integration is available for Go, Java, and Python applications.

The Pyroscope source code integration uses three labels, service_repository, service_git_ref, and service_root_path, to add commit information, repository link, and an enhanced source code preview to the Function Details screen.

Before you begin

To use the Pyroscope source code integration with GitHub, you need an application that emits profiling data, a GitHub account, and a Grafana instance with a Grafana Pyroscope backend.

Application with profiling data requirements

• A Go application which is profiled by Grafana Alloy’s pyroscope.scrape, pyroscope.ebpf (Alloy v1.11.0+), or using the Go Push SDK.
• A Java application which is profiled by Grafana Alloy’s pyroscope.java, pyroscope.ebpf (Alloy v1.11.0+), or using the Java SDK. For Java applications, a committed .pyroscope.yaml file is required to map package names to source code locations (see Advanced source code mapping with .pyroscope.yaml).
• A Python application which is profiled by Grafana Alloy’s pyroscope.ebpf (Alloy v1.11.0+) or using the Python SDK.

Your application provides the following labels (tags):

• service_git_ref points to the Git commit or reference from which the binary was built
• service_repository is the GitHub repository that hosts the source code
• service_root_path (Optional) is the path where the code lives inside the repository

To activate this integration, add at least the two mandatory labels when sending profiles: service_repository and service_git_ref. Set them to the full repository GitHub URL and the current git ref respectively.

For example, using the Go SDK you can set these labels as tags in the configuration:

Go Copy

pyroscope.Start(pyroscope.Config{
    Tags: map[string]string{
      "service_git_ref":    "<GIT_REF>",
      "service_repository": "https://github.com/<YOUR_ORG>/<YOUR_REPOSITORY>",
      "service_root_path": "<PATH_TO_SERVICE_ROOT>", // optional
    },
    // Other configuration
  })

You can also override these values directly in the UI by clicking the edit button next to the repository information in the Function Details panel. This is useful for testing new configurations before deploying label changes, or for quickly setting up source code viewing during an incident.

GitHub requirements

• A GitHub account
• Source code hosted on GitHub

Ensure the source code integration is configured in Grafana Pyroscope

Refer to Configure Pyroscope source code integration on the steps required.

Ensure the Grafana Pyroscope data source is configured correctly

In order to make use of the GitHub integration, the Pyroscope data source needs to be configured to pass a particular cookie through.

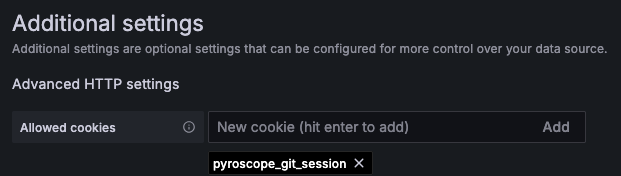

To configure cookie passthrough in Grafana:

1. Navigate to Configuration > Data sources in Grafana.
2. Select your Pyroscope data source.
3. Under Additional settings > Advanced HTTP settings , locate Allowed cookies.
4. Add pyroscope_git_session to the list of cookies to forward.
5. Click Save & test to apply the changes.

Authorize access to GitHub

You can authorize with GitHub using the Connect to GitHub in the Function Details panel.

1. From within Single view with a configured Pyroscope app plugin.
2. Select Pyroscope service. For this example, select cpu_profile.
3. Click in the flame graph on a function you want to explore. Select Function details.
4. On Function Details, locate the Repository field and select Connect to <GITHUB REPOSITORY>, where <GITHUB REPOSITORY> is replaced with the repository name where the files reside. In this case, it’s connecting to the grafana/pyroscope repository.
5. If prompted, log in to GitHub.
6. After Grafana connects to your GitHub account, review the permissions and select Authorize Grafana Pyroscope.

Modify or remove the Pyroscope source code integration from your GitHub account

The Pyroscope source code integration for GitHub uses a GitHub app called “Grafana Pyroscope” to connect to GitHub. This application authorizes Grafana Cloud to access source code and commit information.

After authorizing the app, your GitHub account, GitHub > Settings > Applications lists the Grafana Pyroscope app.

You can change the repositories the Pyroscope source code integration can access on the Applications page.

You can use also remove the app’s permissions by selecting Revoke. Revoking the permissions disables the integration in your Grafana Cloud account.

For more information about GitHub applications:

• Using GitHub apps
• Authorizing GitHub apps
• Differences between installing and authorizing apps

How your GitHub code shows up in profile data queries

After authorizing the Pyroscope Grafana source code integration, you see more details in the Function Details from flame graphs in Profiles Drilldown.

1. Open a browser to your Pyroscope instance.
2. Sign in to your account, if prompted.
3. After the Grafana instance loads, select Drilldown.
4. Next, select Profiles > Single view from the left-side menu.
5. Optional: Select a Service and Profile.
6. Click in the flame graph and select Function details from the pop-up menu.

Function Details

The Function Details section provides information about the function you selected from the flame graph.

The table explains the main fields in the table. The values for some of the fields, such as Self and Total, change depending whether a profile uses time or memory amount. Refer to Understand Self versus Total metrics in profiling with Pyroscope for more information.

Advanced source code mapping with .pyroscope.yaml

For more complex applications with multiple dependencies and external libraries, you can configure custom source code mappings using a .pyroscope.yaml configuration file in your repository. This feature enables Pyroscope to resolve and display source code from:

• Multiple GitHub repositories (for example, third-party dependencies)
• Different versions and branches of dependencies
• Standard library code (Go, Java)
• Vendor directories and local paths

How source code mapping works

When you click on a function in the flame graph, Pyroscope performs the following steps to retrieve the source code:

1. Load configuration: Pyroscope checks for a .pyroscope.yaml file in your service’s root path. This is determined by labels on the profiling data as mentioned in How this works.
2. Match file location: If a configuration file exists, the system matches the file path or function name from the profiling data against the configured mappings using a longest-prefix-match algorithm.
3. Resolve matched source location: If a mapping matches, Pyroscope determines whether to fetch code from:
   • A local path within your repository
   • An external GitHub repository at a specific version
4. Automatic mapping: If no configuration file exists or no mappings matched, the system tries to find the related source code using heuristics:
   • Go: Detect standard library functions and go.mod dependencies
   • All languages: Resolve using the file path relative to the service root
5. Fetch and display: The source code is retrieved and displayed in the Function Details panel with line-by-line profiling data

Supported languages

Pyroscope’s source code integration supports the following languages:

• Go: Full support including standard library, Go modules, and vendor directories. Works automatically without configuration, but can be customized with .pyroscope.yaml.
• Python: Full support including standard library and installed packages. Works automatically without configuration, but can be customized with .pyroscope.yaml.
• Java: Requires a .pyroscope.yaml file with explicit mappings for application code and dependencies.

Configuration file format

Create a .pyroscope.yaml file in the root of your repository (or in the path specified by service_root_path if configured) with the following structure:

YAML Copy

version: v1                    # Config format version (currently only v1 is supported)
source_code:
  mappings:                    # Array of source-to-repository mappings
    - path:                    # Match files by path prefix (optional if function_name is specified)
        - prefix: path/to/match
        - prefix: another/path
      function_name:           # Match by function name prefix (optional if path is specified)
        - prefix: function/prefix
      language: go             # Required: "go", "java", or "python"
      source:                  # Define where to fetch the source code
        local:
          path: src/main/java  # Path relative to the location of the .pyroscope.yaml file
        # OR
        github:
          owner: organization  # GitHub repository owner
          repo: repository     # GitHub repository name
          ref: v1.0.0         # Branch, tag, or commit SHA
          path: src            # Path within the external repository

Configuration rules

• Each mapping must specify either a local or github source (not both)
• Multiple path or function_name prefixes can be specified per mapping (they are OR’d together)
• Mappings are evaluated using longest-prefix-match (more specific mappings take precedence)
• If no mapping matches, Pyroscope falls back to language-specific default behavior (automatic resolution for Go; Java requires explicit mappings)

Example: Go standard library mapping

Map the Go standard library to a specific Go version:

YAML Copy

version: v1
source_code:
  mappings:
    - path:
        - prefix: $GOROOT/src
      language: go
      source:
        github:
          owner: golang
          repo: go
          ref: go1.24.10
          path: src

This configuration ensures that when you view standard library functions like fmt.Println or net/http.Server, Pyroscope fetches the source code from the golang/go repository at version 1.24.10.

Example: Java application with dependencies

Configure mappings for a Java Spring application:

YAML Copy

version: v1
source_code:
  mappings:
    # Local application code
    - function_name:
        - prefix: org/example/myapp
      language: java
      source:
        local:
          path: src/main/java

    # JDK standard library
    - function_name:
        - prefix: java
        - prefix: javax
      language: java
      source:
        github:
          owner: openjdk
          repo: jdk
          ref: jdk-17+0
          path: src/java.base/share/classes

    # Spring Framework dependencies
    - function_name:
        - prefix: org/springframework/web/servlet
      language: java
      source:
        github:
          owner: spring-projects
          repo: spring-framework
          ref: v5.3.20
          path: spring-webmvc/src/main/java

    - function_name:
        - prefix: org/springframework/web
        - prefix: org/springframework/http
      language: java
      source:
        github:
          owner: spring-projects
          repo: spring-framework
          ref: v5.3.20
          path: spring-web/src/main/java

This configuration demonstrates:

• Longest-prefix matching: org/springframework/web/servlet matches the more specific mapping, while org/springframework/web/client matches the less specific one
• Multiple prefixes: HTTP and web packages from Spring are grouped together
• Mixed sources: Local application code and external dependencies

Example: Go application with vendor dependencies

Map vendored dependencies and modules:

YAML Copy

version: v1
source_code:
  mappings:
    # Vendor directory (for dependencies copied into your repo)
    - path:
        - prefix: vendor/
      language: go
      source:
        local:
          path: vendor

    # External dependency at specific version
    - path:
        - prefix: github.com/prometheus/client_golang
      language: go
      source:
        github:
          owner: prometheus
          repo: client_golang
          ref: v1.19.0
          path: ""

Example: Python application with dependencies

Map Python application code and external dependencies:

YAML Copy

version: v1
source_code:
  mappings:
    # Local application code
    - path:
        - prefix: /app/src
      language: python
      source:
        local:
          path: src

    # Python standard library
    - path:
        - prefix: /usr/lib/python3.12
        - prefix: /usr/local/lib/python3.12
      language: python
      source:
        github:
          owner: python
          repo: cpython
          ref: v3.12.0
          path: Lib

    # External package (requests)
    - path:
        - prefix: /usr/local/lib/python3.12/site-packages/requests
      language: python
      source:
        github:
          owner: psf
          repo: requests
          ref: v2.31.0
          path: src/requests

This configuration demonstrates:

• Local application code: Maps your application’s source directory
• Standard library: Maps Python standard library paths to the CPython repository
• External packages: Maps third-party packages to their GitHub repositories

Language-specific behavior

Go

For Go applications, Pyroscope provides intelligent fallback behavior even without a .pyroscope.yaml file:

• Standard library: Automatically detected and mapped to the appropriate golang/go repository version
• Go modules: Parsed from go.mod in your repository, with automatic version resolution
• Vanity URLs: Resolved to canonical repositories (for example, gopkg.in, google.golang.org)
• Vendor directories: Files in vendor/ are searched relative to repository root

The system extracts Go version information from paths like /usr/local/go/go1.24.10/src/fmt/print.go.

Java

Java applications require explicit mappings in .pyroscope.yaml:

• Function name conversion: Java function names like org/example/App$Inner.method are automatically converted to org/example/App.java
• No fallback: Unlike Go and Python, Java files cannot be resolved without configuration
• Inner classes: Automatically handled (inner class markers are stripped)

Python

For Python applications, Pyroscope provides intelligent fallback behavior similar to Go:

• Standard library: Automatically detected and mapped to the appropriate python/cpython repository version
• Installed packages: Resolved from virtual environments or system packages
• File paths: Direct file paths are used when available from profiling data

The system extracts Python version information from paths to map to the correct CPython repository version.

Troubleshooting

No source code displayed

• Verify the .pyroscope.yaml file is in your service’s configured root path and that the root path is configured as expected
• Check that the path or function_name prefixes match your profiling data
• For Java applications, ensure all dependencies have mappings configured
• Confirm GitHub OAuth authorization is active and hasn’t expired

Wrong version displayed

• Check the ref field in your mapping points to the correct branch, tag, or commit
• For Go standard library, verify the Go version in your mapping matches your application’s Go version
• Use explicit commit SHAs for reproducibility

Mapping precedence issues

Pyroscope uses longest-prefix-match. If a more specific mapping isn’t being used:

• Verify the prefix exactly matches the beginning of the path or function name
• Check that more specific mappings are listed in the configuration (order doesn’t matter, but clarity helps)
• Test with exact prefixes from your profiling data
